Drawbar eyes

You can find more information about our vehicle parts for agriculture in our catalog.

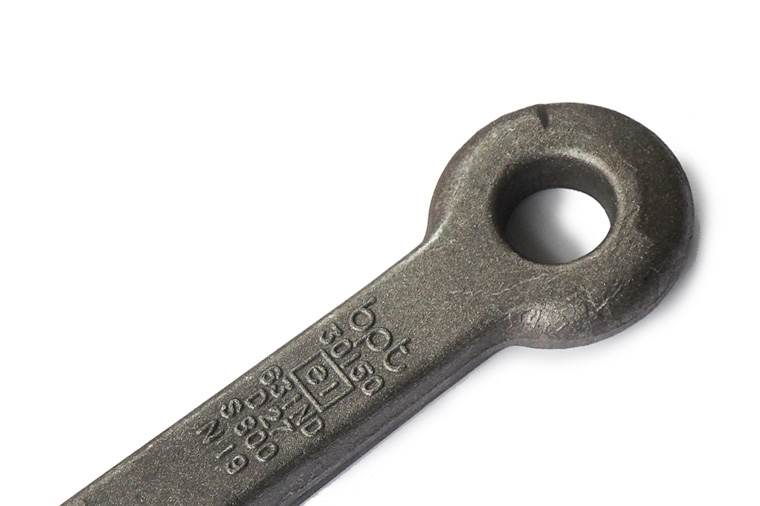

Drawbar eye without socket

Drawbar eye 50 x 50 mm to weld in tow bars Type ZG1 - BPT

• BPT
• Material: .........................ST52-3
• Type: ................................ZG1
• Standard: ........................DIN 74054-40.C
• VS.......................................25 km/h
• .............................................~~ M29-40
• Shaft: ................................50x50mm
• perm. vertical load: .....1000 kg
• perm. total weight:...... 5000 kg
•  eye:................................... Ø 40mm
  - without bush

  Buer-Art. No.:12800010

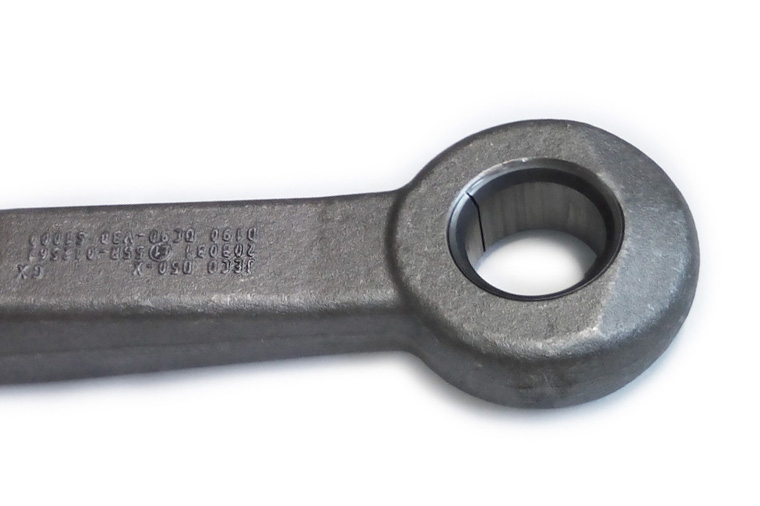

Drawbar eye with socket

Drawbar eye 65 x 55 mm - JECO

•  DIN 74054-40A
• Weigth: 7,5 Kg
• D-value: 125 kN
• DC-value: 66 kN
• V-value: 23 kN
• static support load: 900 kg
• for 40 mm coupling bolt
• with socket
• Shaft cross-section: 65 x 55 mm
• Form A ST 52-3

  Buer-Art. No.:45000030

Heavy duty Drawbar eye with socket

Drawbar eye 90 x 75 mm - JECO

•  Feature: Heavy duty drawbar eye
• Shaft: H-profile
• Bush-∅ in mm: 50
• Shaft in mm: 90 x 75
• Lenght in mm: 385
• D-Value in kN: 314
• perm. vertical load in kg: > 2000
• ECE Tyengenehmigungs-Nr.: R55-012776
• Class: S355 J2 Nr. 1.0570
• Produced in: Germany

  Buer-Art. No.:45000150

Drawbar eye

in stock
