1200 mm - Ball bearing turntable - 1200/22 HD - 1200 22HD - drilled

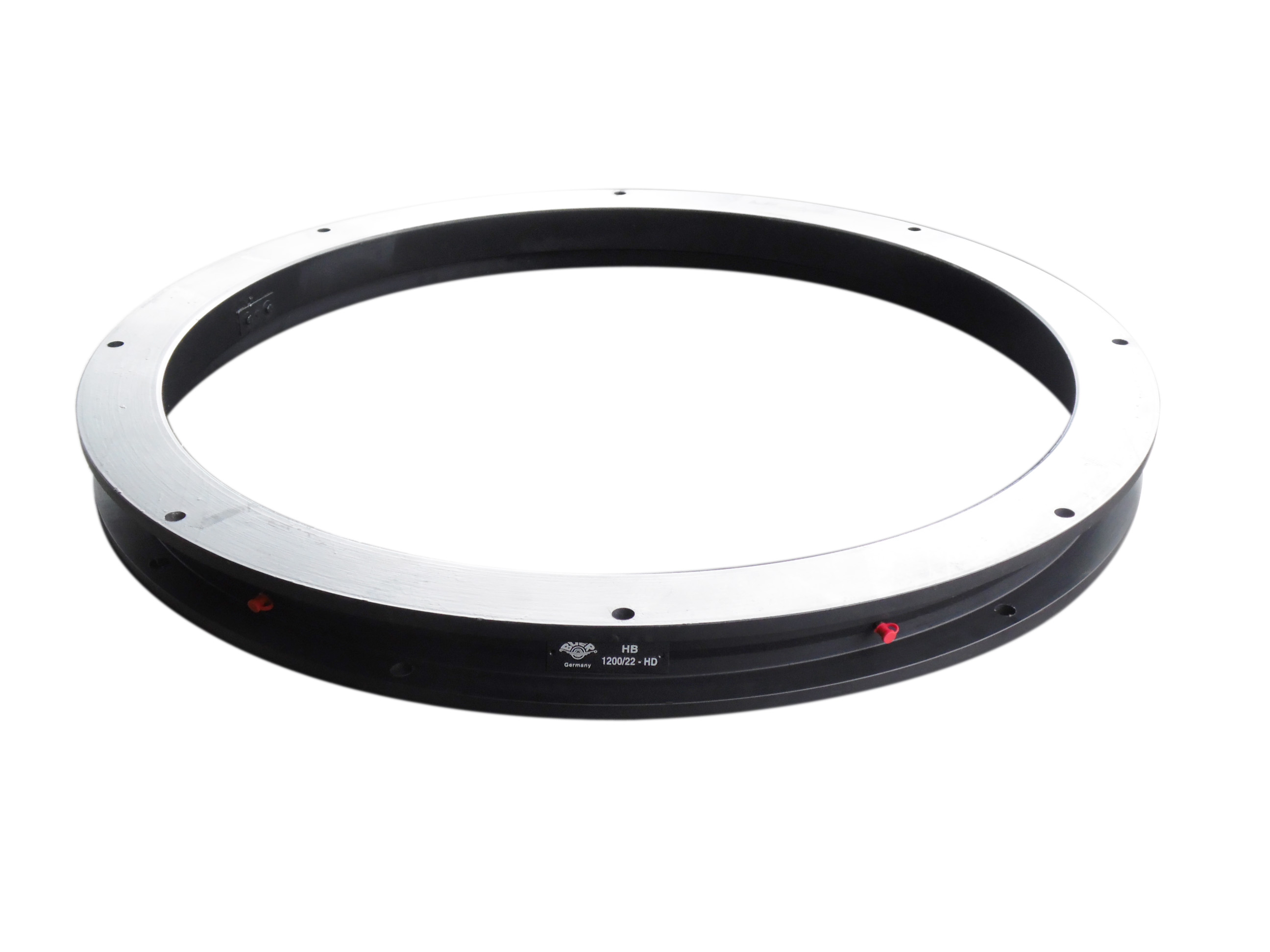

Ball bearing turntable 1200 mm - 1200/22 HD (Heavy Duty)
for truck trailers, agricultural trailers, irrigation machines and special vehicles
High-quality component at a top price. Versatile.
Technical data
- Axial-load: 13.000 kg

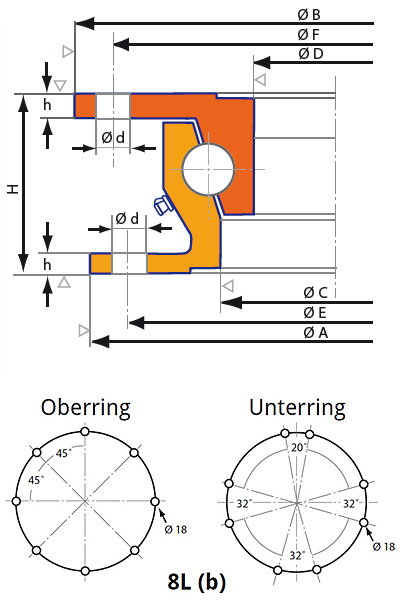

- Other dimensions see figure below
- with lubricator nipples
- Weight: 92 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drill |
| HB 1200/22 HD | 1200 | 1211 | 1083 | 1050 | 1160 | 1174 | 15 | 90 | 92 | 13 | 8L (b) |
 |
Für die Schmierung unserer Kugellenkkränze empfehlen wir das Mehrzweckfett BG-Y von Normfest. Gleich mitbestellen ! |
