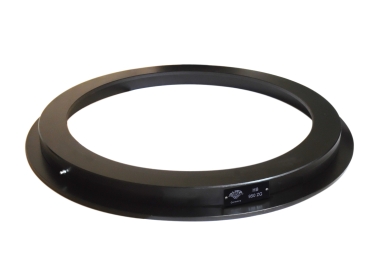

[1] Z - profile

Kugellenkkränze



Z-Profile
Diameter [t] [kg] Description Art.- No.

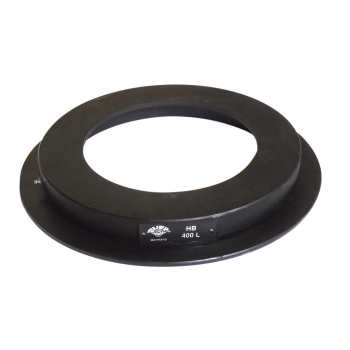

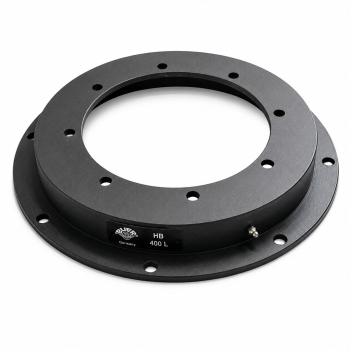

400 mm 0,8 6 HB 400L 34800200

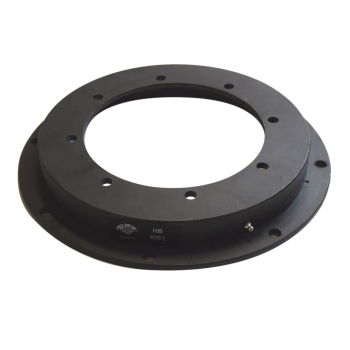

400 mm 0,8 6 400L JOST 34200030
400 mm 0,8 6 HB 400L* 34800430
500 mm 1,8 19 HB 500ZG 34800010
500 mm 1,8 19 HB 500ZG * 34800015
650 mm 2,5 24 HB 650ZG 34800020
650 mm 2,5 24 650N JOST 34200020
750 mm 3 33 HB 750ZG 34800030
850 mm 3,5 38 HB 850ZG 34800040
950 mm 4 45 HB 950ZG 34800050
950 mm 6 50 HB 950ND 34800460
1050 mm 4,5 60 HB 1050ZG 34800060
1100 mm 7,5 70 HB 1100ND 34800410
* drilled Version

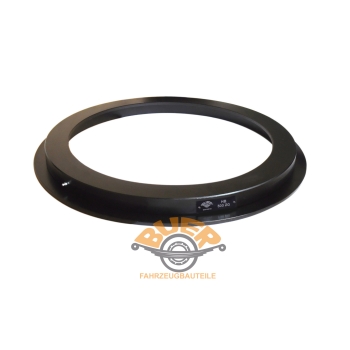

500 mm - Ball bearing turntable / ball race  - HB 500ZG - undrilled (Z-profile)
  • Axial-load: 1800 kg
  • Other dimensions see figure below
  • with 2 lubricator nipples
  • Weight: 19 kg
185,90 EUR
incl. 19% tax excl. Shipping costs

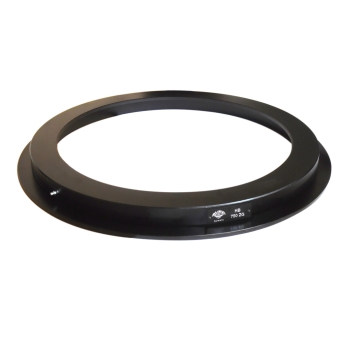

750 mm - Ball bearing turntable  - 750 ZG, 750ZG - undrilled (Z-profile)
Axial-load: 3000 kg
303,50 EUR
incl. 19% tax excl. Shipping costs

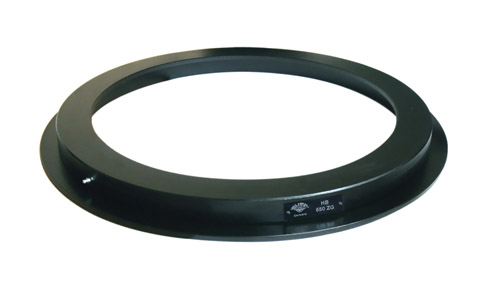

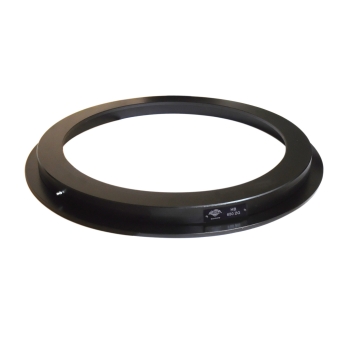

650 mm - Ball bearing turntable / ball race  - HB 650ZG - undrilled (Z-profile)
  • Axial-load: 2500 kg
  • Other dimensions see figure below
  • with 2 lubricator nipples
  • Weight: 26 kg
263,90 EUR
incl. 19% tax excl. Shipping costs

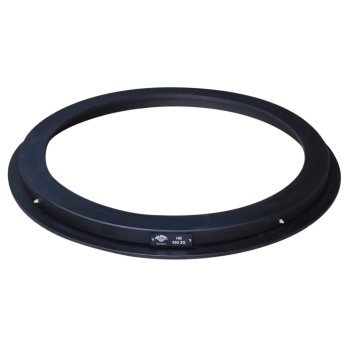

850 mm - Ball bearing turntable / ball race  - HB 850ZG - undrilled (Z-profile)
  • Axial-load: 3500 kg
  • Other dimensions see figure below
  • with lubricator nipples
  • Weight: 35 kg
322,90 EUR
incl. 19% tax excl. Shipping costs

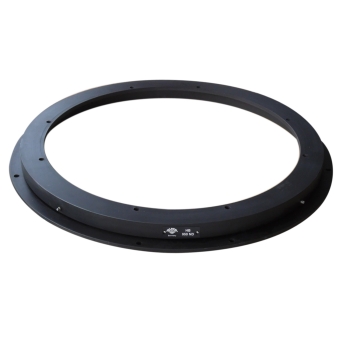

950 mm - Ball bearing turntable / ball race - HB 950ND - drilled
  • Axial-load: 6000 kg
  • with 4 lubricator nipples
  • Weight: 50 kg
494,90 EUR
incl. 19% tax excl. Shipping costs
