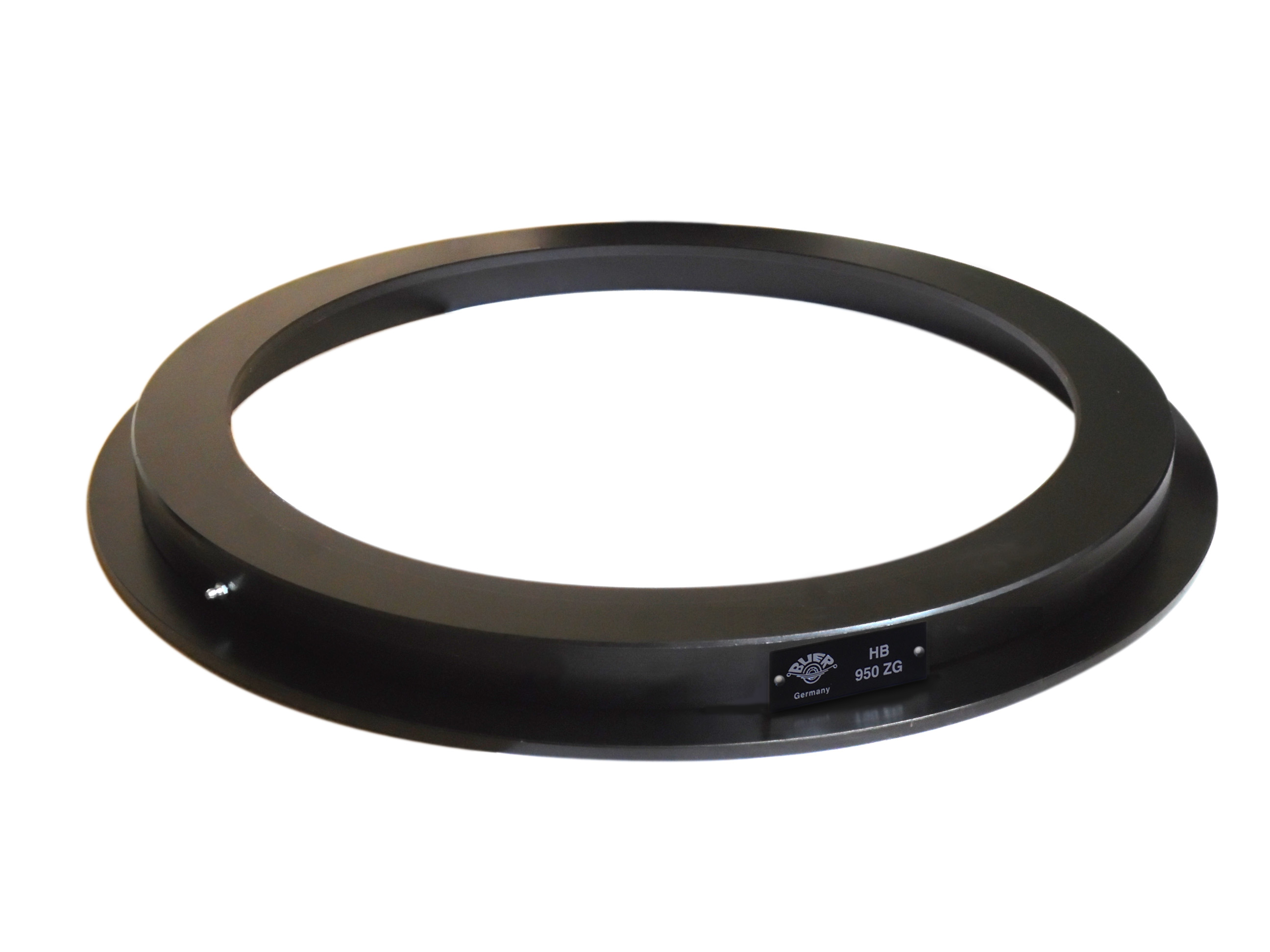

950 mm - Ball bearing turntable / ball race HB 950ZG - undrilled
Ball bearing turntable / ball race 950ZG - 950 mm undrilled with Z-profile
- Axial-load: 4000 kg

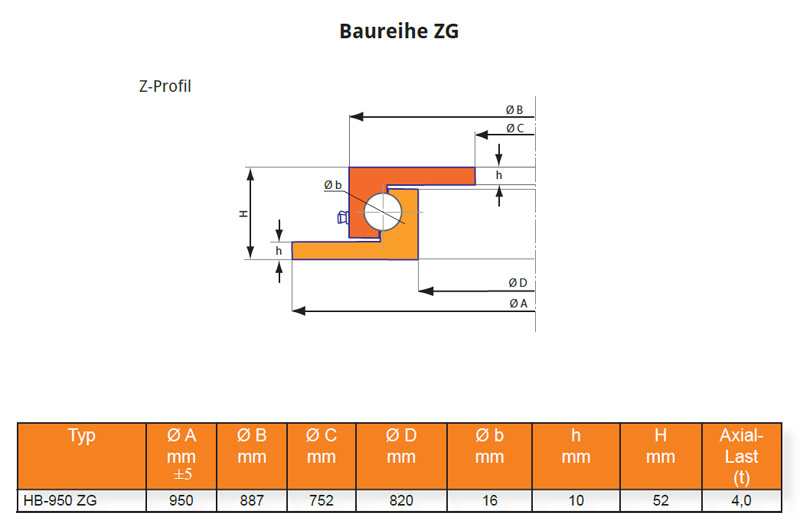

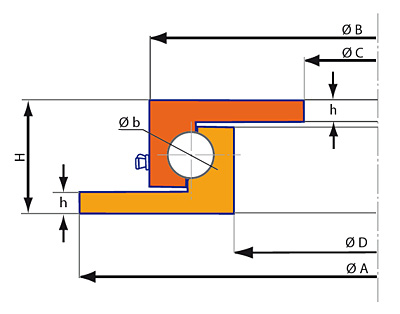

- Other dimensions see figure below
- with lubricator nipples
- Weight: 40 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø b mm |
h mm |
H mm |
weight Kg |
Axial-Load (t) |
| 959ZG | 950 | 887 | 752 | 820 | 16 | 10 | 52 | 40 | 4,0 |
The ball bearing turntable is provided with holes by the customer. Fixing by welding is not allowed!
Note: Free shipping within Germany. - Shipping costs to other countries on demand.
