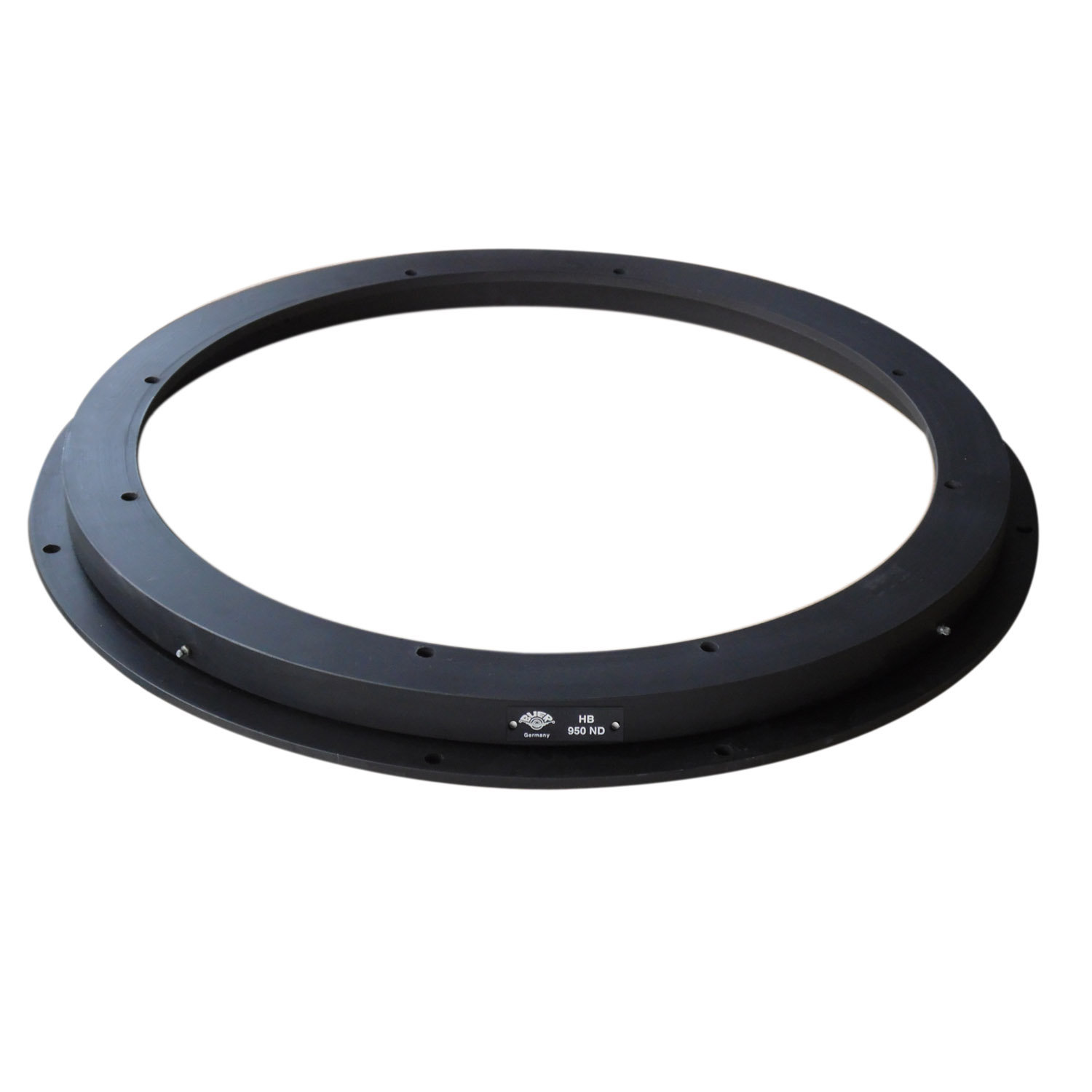

950 mm - Ball bearing turntable / ball race - HB 950ND - drilled
Ball bearing turntable / ball race HB 950ND - 950 mm drilled with Z-profile
- Axial-load: 6000 kg

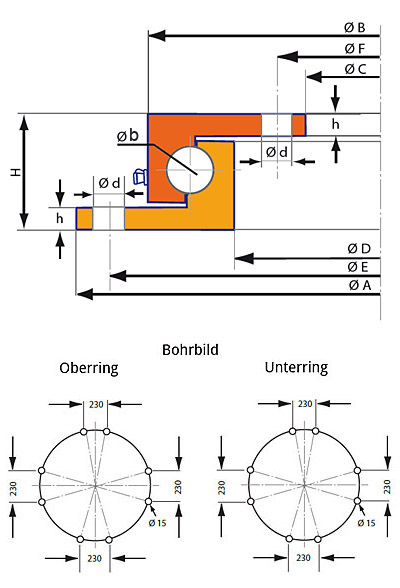

- Other dimensions see figure below
- with 4 lubricator nipples
- Weight: 50 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
h mm |
H mm |
Ø b Balls mm |
Weight [Kg] |
Axial Load [t] |
| HB 950ND | 952 | 885 | 750 | 821 | 920 | 780 | 12 | 60 | 15 | 50 | 6,0 |
