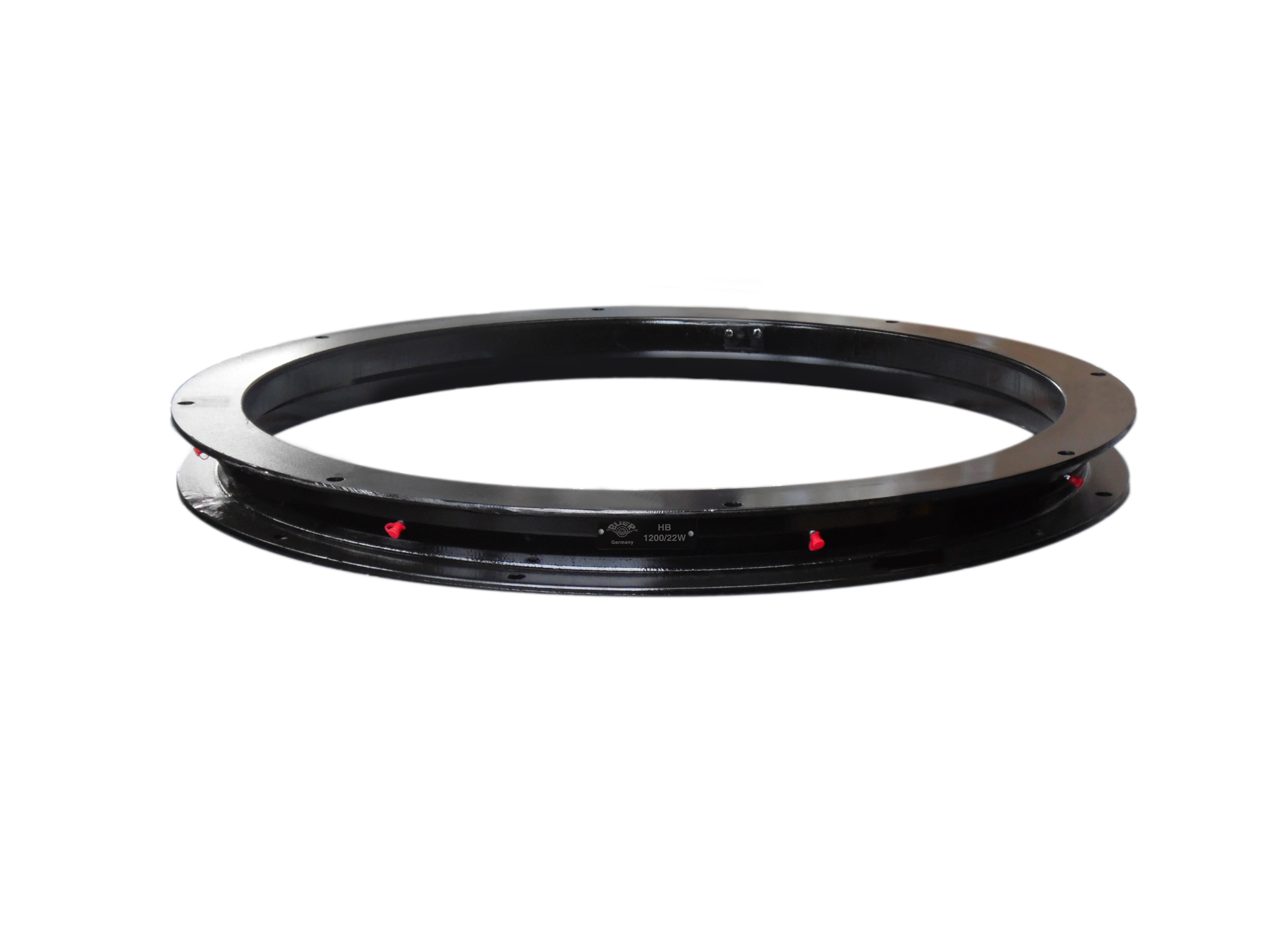

1300 mm - Ball bearing turntable, ball race - HB 1300/22 W low maintenance - drilled
Ball bearing turntable 1300 mm - HB 1300/22 - low maintenance
for truck trailers, agricultural trailers, irrigation machines and special vehicles
High-quality component at a top price. Versatile.
- Axial-load: 14.000 kg
- Other dimensions see figure below
- with lubricator nipples
- Weight: 94 kg
- High quality product
- designed for fifth wheel chassis
The ball bearing turntable is provided with holes by the customer. Fixing by welding is not allowed!
Note: Free shipping within Germany. - Shipping costs to other countries on demand.
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
Ø d mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drill |
| HB 1300/22 (W) | 1300 | 1308 | 1177 | 1146 | 1260 | 1274 | 18 | 10 | 90 | 94 | 14 | 8L(b) |
 |
Für die Schmierung unserer Kugellenkkränze empfehlen wir das Mehrzweckfett BG-Y von Normfest. Gleich mitbestellen ! |
