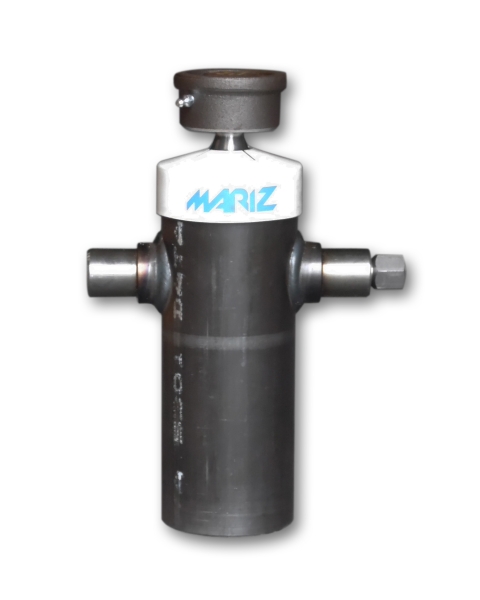

1200 mm Hub 5,6t 110/4/1200 Hydraulic Telescopic cylinder ( 4 extensions ) Type 11A Mariz

Hydraulic Telescopic cylinder type 11A with ball lead
110 x 4 x 950


Stroke: ............................. 1200 mm
Extensions:........................4
Weight:..............................25,4  Kg
Stroke volume:...................4,6 dm³
Lifting force: ......................5,6 t
Pressure max: ..................180 bar
Height (Min-Max): ..............390 - 950 mm
Temperature range:............-30°C - 100°C


Ø Extensions (mm): ..................... 45 x 60 x 75 x 90
1. Extension (180 bar) ........2,9 t
2. Extension (180 bar) ........5,1 t
3. Extension (180 bar) ........7,9 t
4. Extension (180 bar) ........11,4 t

Made in Italy

A	B	C	D	E	F	G	I	L	M	N
386	157	148	228	40	229	110	45	230	40	40
