1010 mm 4,5t 115/3/1010 (3-extensions) Hydraulic Telescopic cylinder DiNatale K32401S incl. cradle

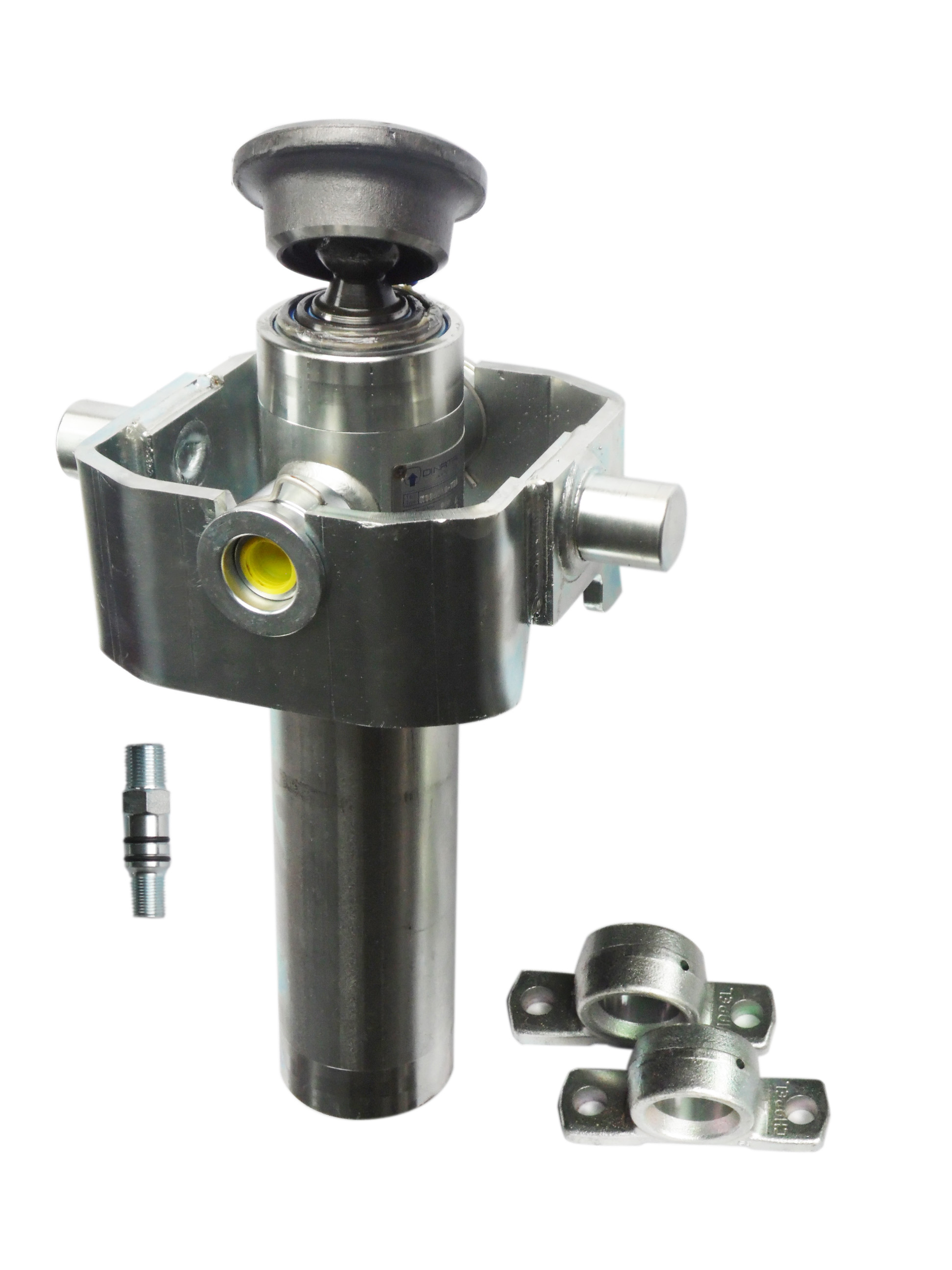

Hydraulic Telescopic cylinder DiNatale K32401S  incl. cradle

115 x 3 x 1010


Stroke: .............................. 1010 mm
Extensions:.........................3
Weight:...............................33  Kg
Durchmesser der Stufen:

• 1.Extension: 45 mm
• 2. Extension: 60 mm
• 3. Extension: 75 mm

max. pressure: 20 bar

Nominal power:

• 1.Extension: 31 kN
• 2.Extension: 56 kN
• 3.Extension: 88 kN

Special feature: steps are Tenifer coated!

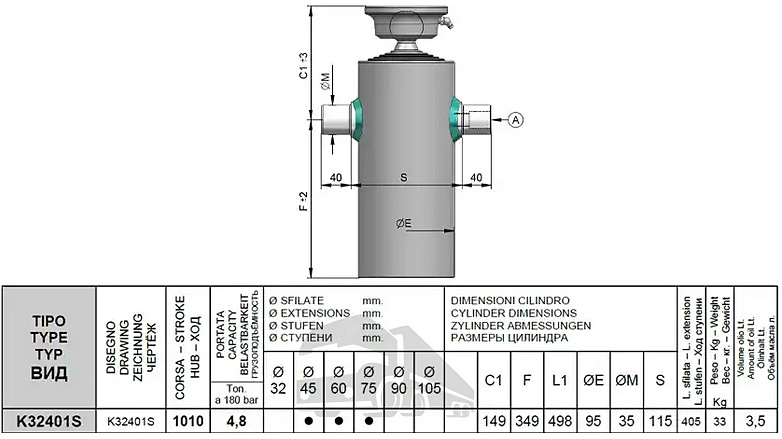

For further dimensions, please see the image below:




Made in Italy
