Hydraulic Telescopic cylinder 180 x 3 x 900 ( 3 extensions ) Type RMP9 Mariz

Hydraulic Telescopic cylinder Type RMP9 with ball lead
180 x 3 x 900


Stroke: .............................. 900 mm
Extensions:.........................3
Weight:...............................35,7  Kg
Stroke volume:.....................9,6 dm³
Pressure max: ....................180 bar
Oil volume:..........................10,2 L
Temperature range:.............-30°C - 100°C


Ø Extensions (mm): ..................... 90x 105 x 120
1. Extension (180 bar) ........9,5 t
2. Extension (180 bar) ........13,0 t
3. Extension (180 bar) ........17,0 t

Made in Italy

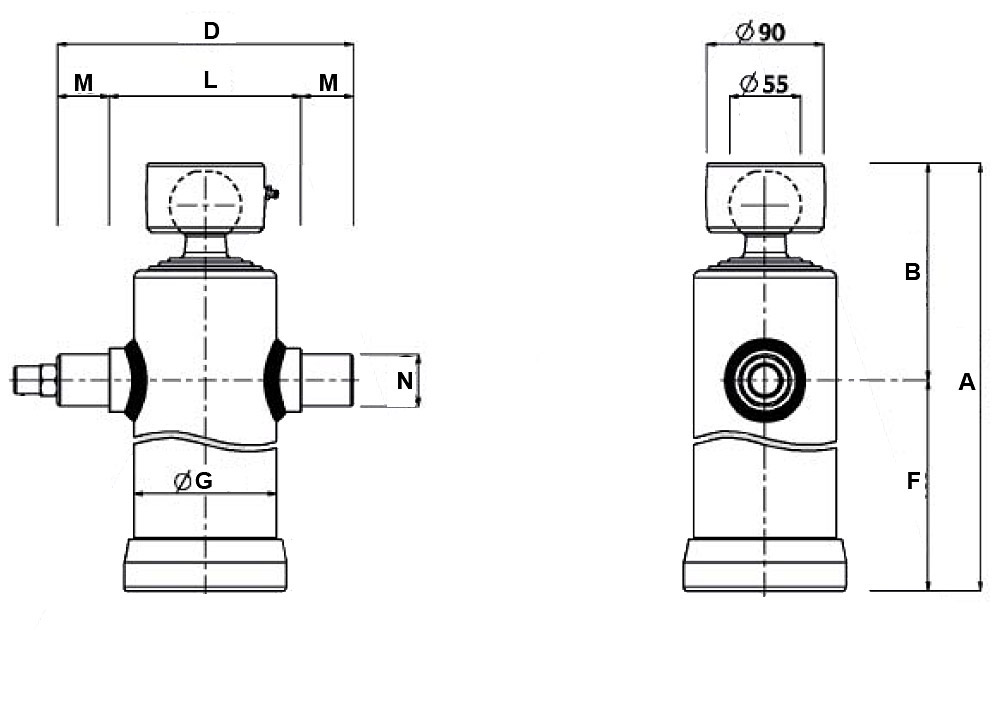

A	B	C	D	E	F	G	I	L	M	N
467	170	180	270	45	297	145	55	280	40	45
