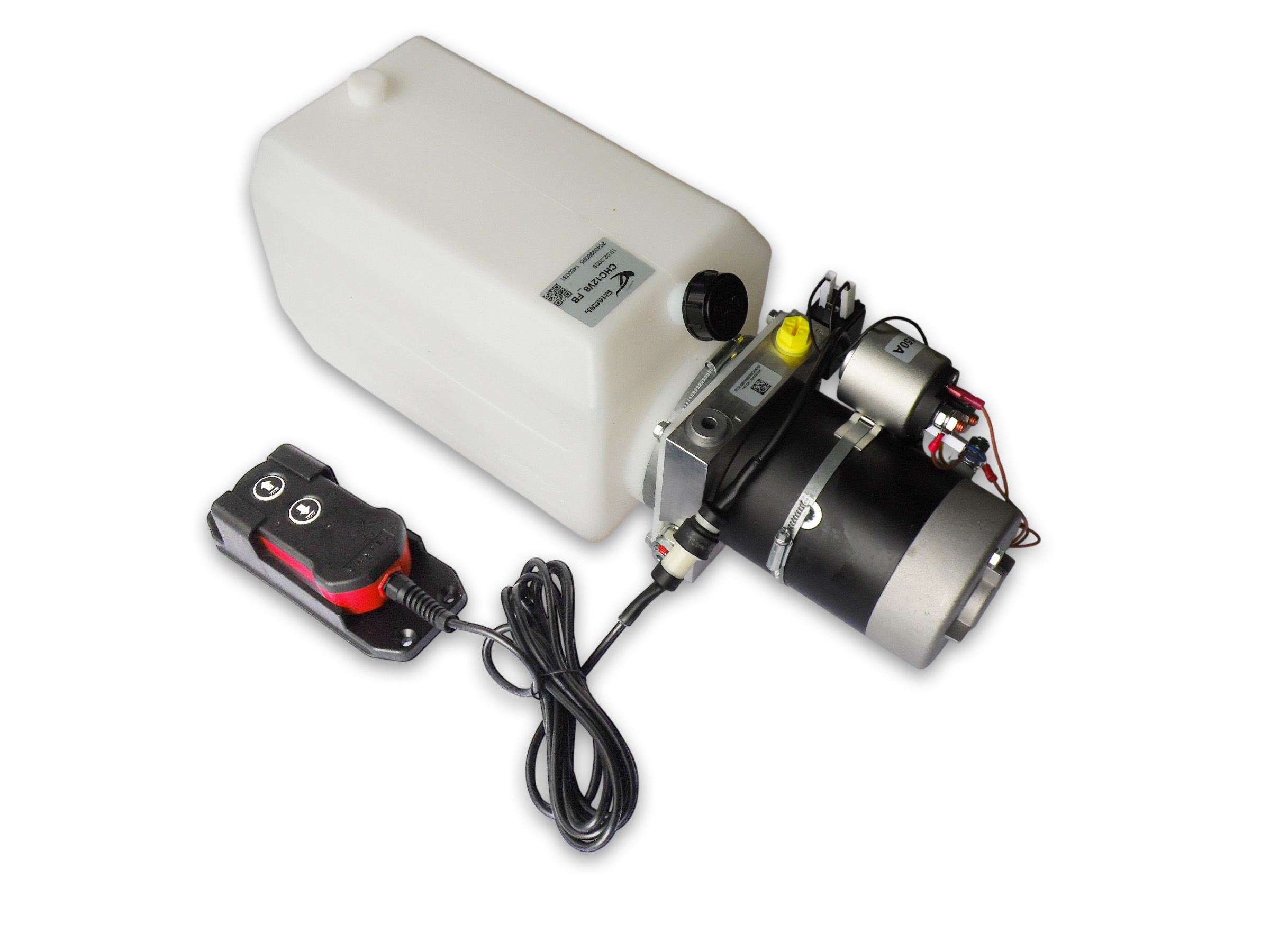

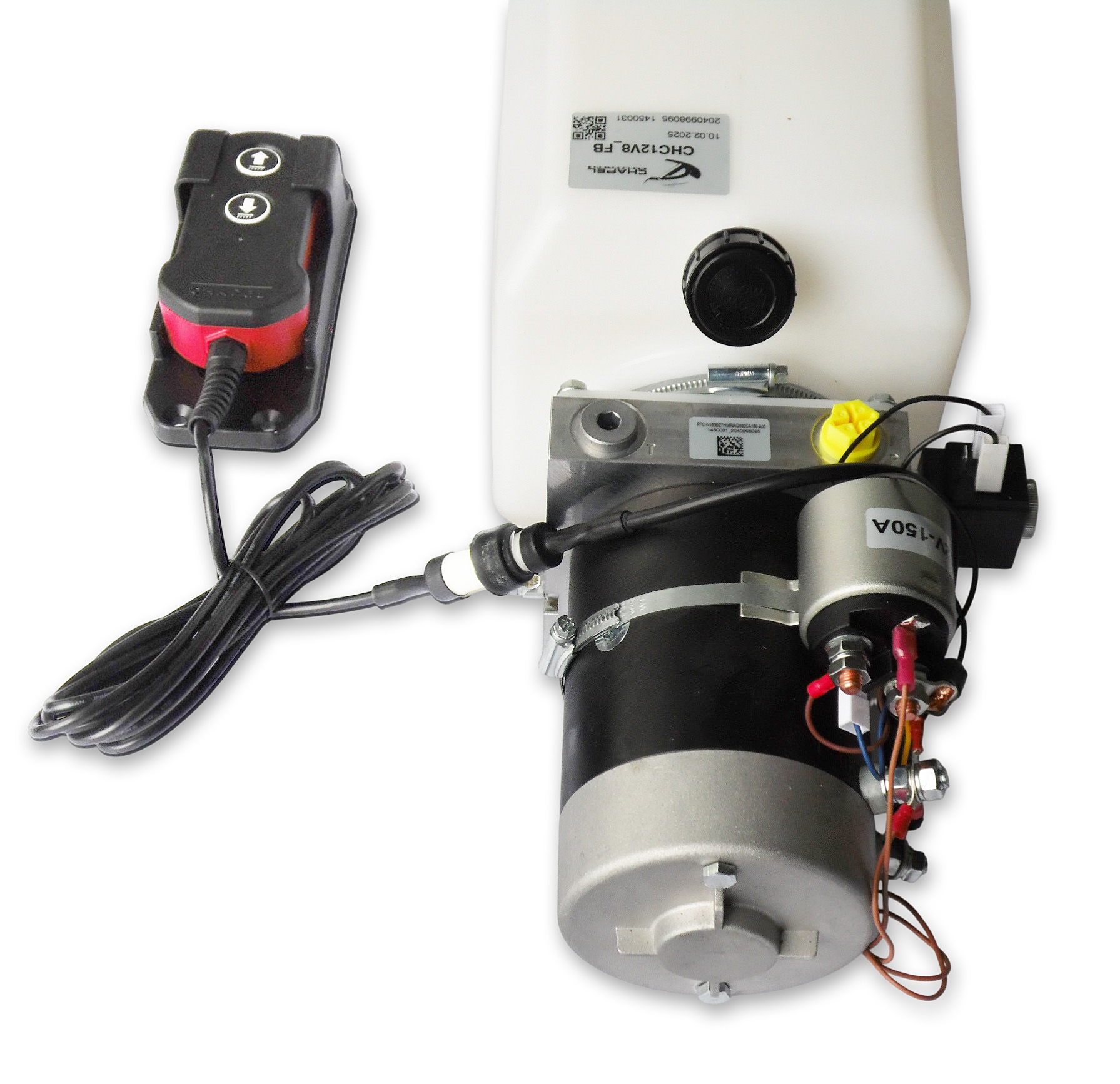

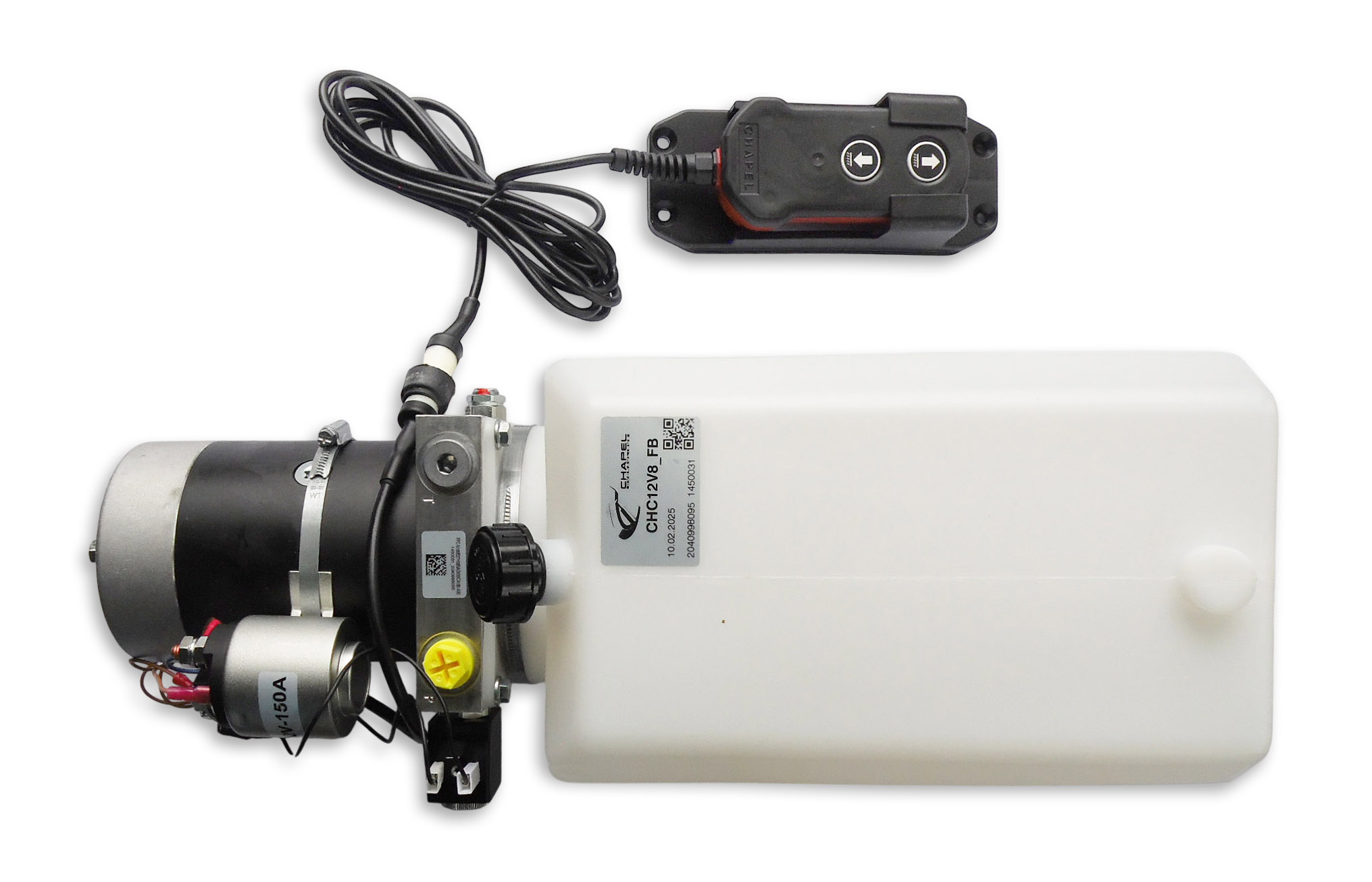

Hydraulic unit Hydraulic Aggregat 12V 1,6kW 2,7ccm 8L Chapel CHC12V8, CHC12V8_FB

Chapel CHC12V8_FB

Hydraulic unit 12V 1.6kW 2.7ccm 8L

Valve voltage / connector: 12V DC, DIN43650
Approved oils: HLP 32 DIN43650
Recommended viscosity class: ISO VF32
Max. operating pressure: 200bar
Working pressure: 180bar
Operating voltage of the drive motor: 12V DC
Motor power: 1.6kW
Speed: 2360 l/min
Switch-on time for short-term operation S2: 2 min.
Installation position: horizontal Tank volume: 8L

Application: For short-term operation of single-acting cylinders, such as small tipper vehicles, loading ramps, lifting work platforms, and axle lowering.
