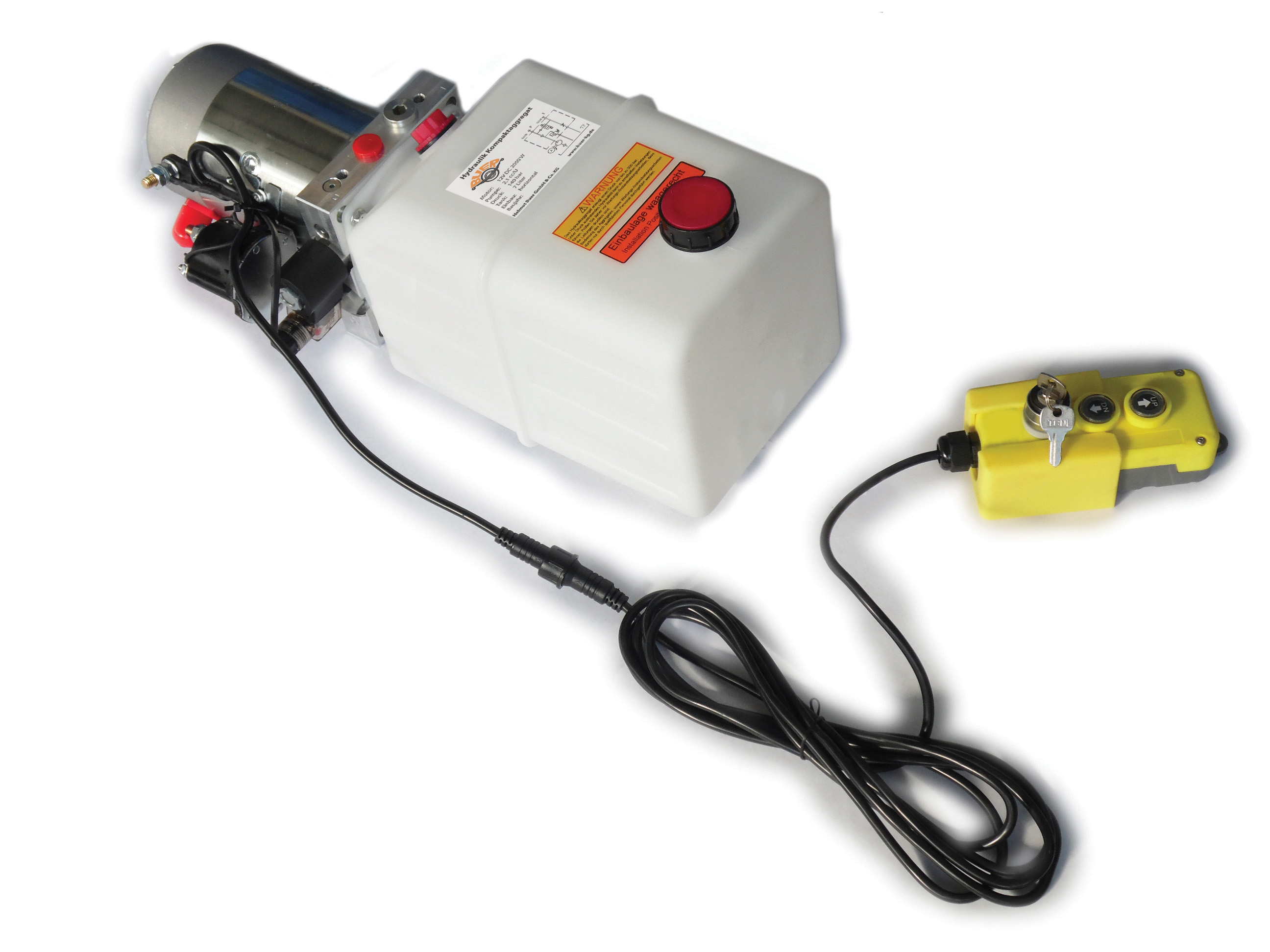

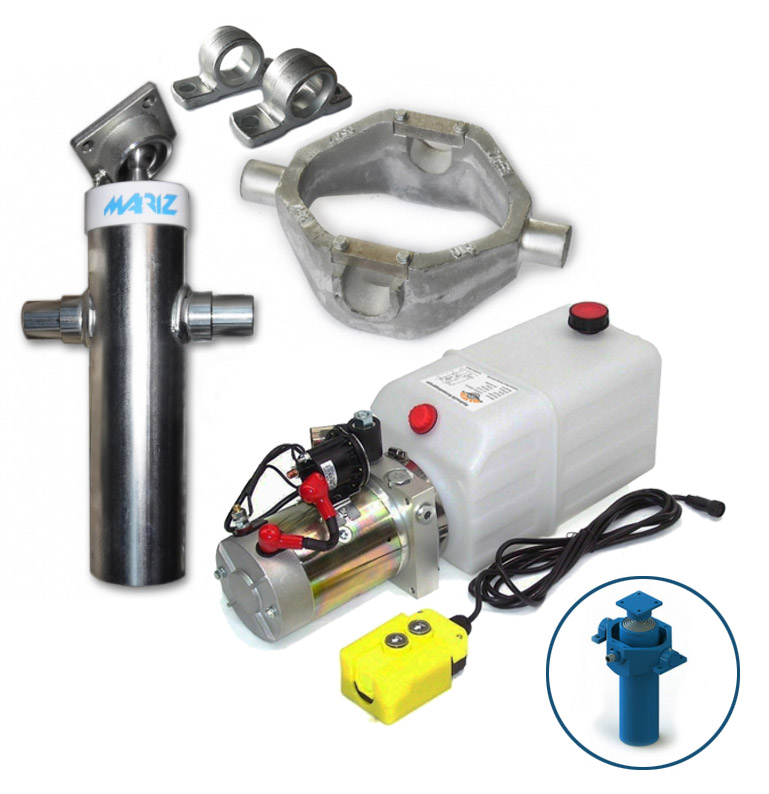

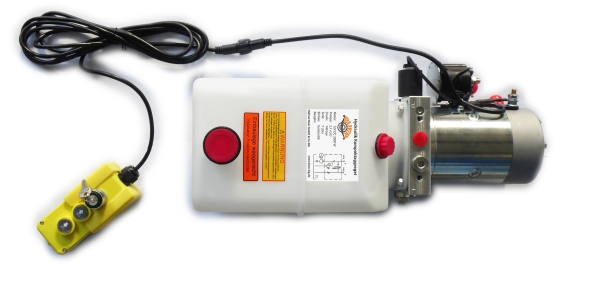

Hydraulic pump aggregat - 12Volt + hydraulic cylinder 900mm + cradle

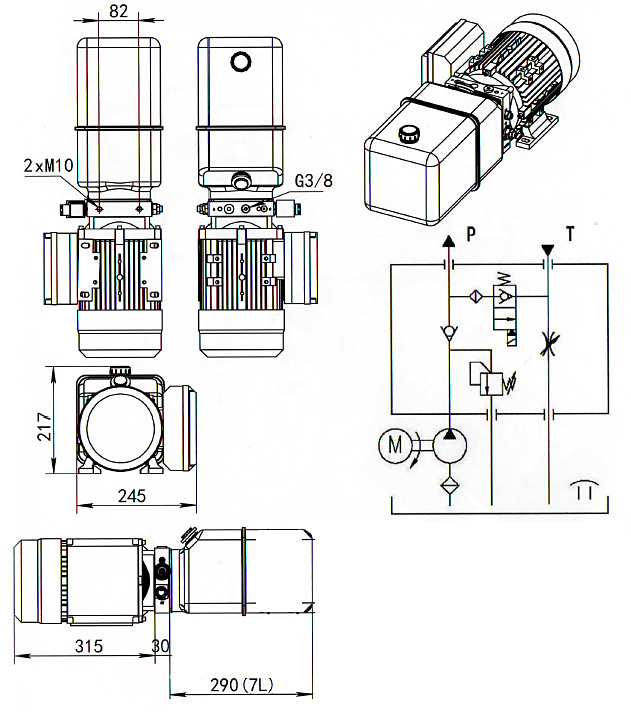

Technical data

Voltage:.......................................12 Volt
Engine power:.............................2,0 kW
Max. capacity..............................2,1 ccm/U
Working pressure:.......................180 bar
Max. pressure:........................... 250 bar
Connection:.................................G 3/8" internal thread
Tank:...........................................7 Liter, transparent

- assembled in Germany -

Application:
For short-term operation of single-acting cylinders, for example small dump trucks, tail lifts, aerial work platforms, axle lowering




Mariz Telescopecylinder Hydrauliccylinder Type 31.1518 with cardan ring
98 x 3 x 900



Stroke	900 mm
operating pressure max.	200 bar
load capacity ball Ø 39mm	4 to
load capacity cardan ring max..	10 to
operating temperature	-30°C+100°C
stroke volume	2.7 dm3
weight	19.7 kg
weight cardan ring type3	8.2 kg
Galvanized	15 um+/- 5
hard chrome plated	25 um - - 5



Stroke:...................900 mm
stroke volume:................2700 cm³
Ø Stages (mm): ...........75 x 60 x 45
1. Stage (180 bar) ..........8,8 to
2. Stage (180 bar) ..........5,7 to
3. Stage (180 bar) ..........3,2 to

Made in Italy




c	d	e	f	g	l	m	t	u	v	x
180	445	148	230	96	40	40	100	13	100	39
