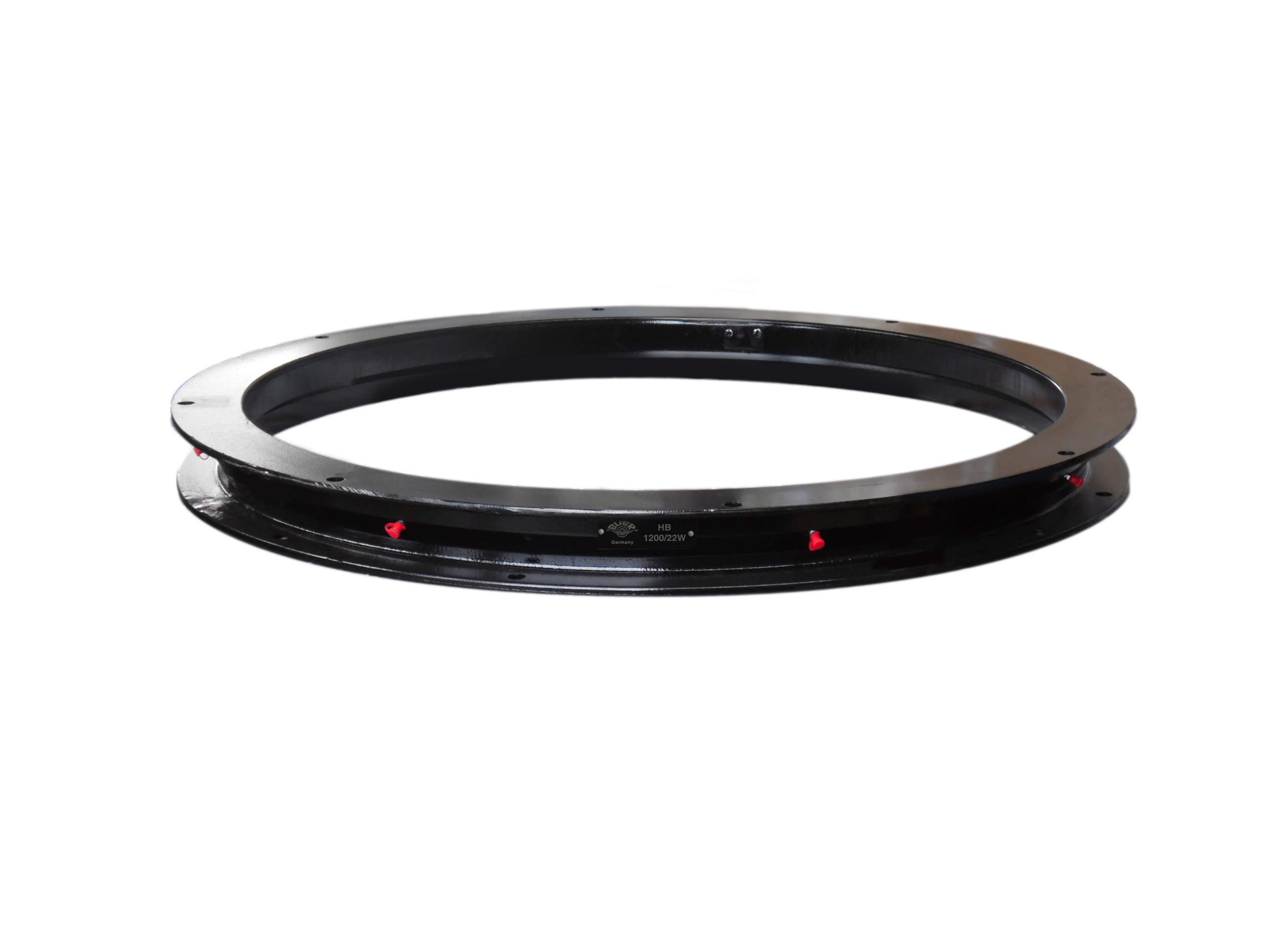

1100 mm - Ball bearing turntable - HB 90/1100.22WA low maintenance - drilled
Ball bearing turntable 1100 mm - HB 90/1100.22WA - low maintenance
- MADE IN GERMANY -
for truck trailers, agricultural trailers, irrigation machines and special vehicles
- Axial-load: 12000 kg

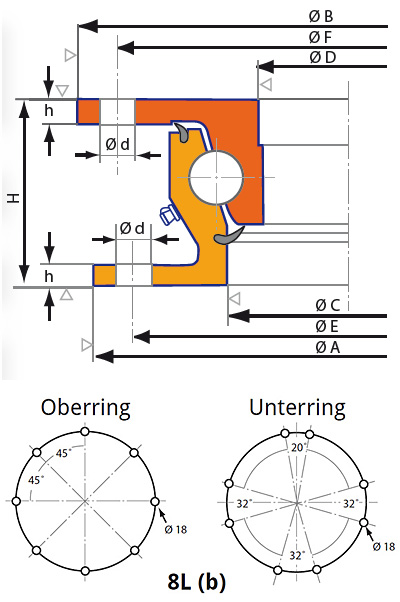

- Other dimensions see figure below
- with lubricator nipples
- Weight: 71 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
Ø d Balls mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drill |
| HB 90.1100.22 WA | 1100 | 1108 | 985 | 954 | 1060 | 1074 | 18 | 10 | 90 | 71 | 12 | 8L(b) |
